TRENDING HYBRID TECHNOLOGY
Trending Hybrid Technology – Smarter Solar, Stronger Power, Future-Ready India
Hybrid solar is no longer just an upgrade—it’s becoming the new standard for energy independence in India. With frequent EB fluctuations, rising tariffs, and increasing power demand, hybrid systems deliver what traditional ongrid systems cannot: generation + storage + intelligence in one solution.
Instead of depending fully on the grid or wasting excess solar energy, hybrid technology ensures every unit generated is optimized, stored, and used smartly. It’s not just about saving electricity bills—it’s about power security and control.

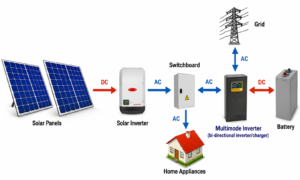

🔧 Hybrid Solar System Configuration
Advantages of Hybrid Solar Systems
🔋 1. Seamless Backup with EPS (<20 ms Switching)
Hybrid inverters provide instant grid-to-battery transition, ensuring uninterrupted supply to critical loads without voltage dip.
⚡ 2. Peak Shaving & Load Shifting
Battery stores excess solar and supplies during peak tariff hours, reducing demand charges and grid dependency.
🔄 3. Multi-Source Energy Management
Intelligent control of Solar (DC) + Battery (DC) + Grid (AC) ensures optimized power flow and maximum self-consumption.
📈 4. Higher DC Utilization (Oversizing Capability)
Supports 130–150% PV oversizing, improving generation during low irradiance conditions and maximizing ROI.
🔌 5. Dual MPPT Optimization
Independent MPPT tracking improves performance under partial shading and multiple string orientations.
📲 6. Advanced Monitoring & Control
Real-time data on generation, battery SOC, load profile, and fault diagnostics via smart apps.
🚀 7. Scalable & Future-Ready Architecture
Supports parallel operation, battery expansion, and integration with EV loads or smart energy systems.
- DG Synchronization
Hybrid systems use solar + battery first, so DG runs only when required—reducing diesel usage and EB dependency from TANGEDCO.
This can bring EB consumption down to ~30–40% of total usage, cutting both electricity and fuel costs.
| Parameter | Tata (Mysine) | V Sole | Deye | Sofar | Luminous | Waaree | UTL | Exide |
| Rated Power | 5 kW | 5 kW | 5 kW | 5 kW | 5 kW | 5 kW | 5 kW | 5 kW |
| Max PV Input | 6.5–7 kW | ~6.5 kW | ~6.5 kW | ~6.5 kW | ~6 kW | ~6.5 kW | ~6 kW | ~6 kW |
| Start Voltage | 120–150 V | 120 V | ~125 V | ~120 V | ~100 V | ~120 V | 90–120 V | ~120 V |
| MPPT Range | 120–500 V | 120–480 V | 125–425 V | 160–500 V | 120–450 V | 120–500 V | 120–450 V | 120–450 V |
| Efficiency | 96–98% | ~97% | up to 97.6% | ~97.5% | ~96% | ~97% | ~96% | ~96–97% |
| Battery Type | Lithium | Lithium | Lithium / LA | Lithium | Lithium / LA | Lithium | LA / Lithium | Lithium |
| Battery Voltage | 48 V | 48 V | 40–60 V | 48 V | 48 V | 48 V | 48 V | 48 V |
| Max Charge Current | ~100 A | 100 A | up to 120 A | ~100 A | 80–100 A | 100 A | 80–100 A | ~100 A |
| 🔋 Backup (Typical)* | 6–10 hrs | 5–8 hrs | 6–10 hrs | 5–8 hrs | 4–6 hrs | 5–8 hrs | 4–6 hrs | 5–8 hrs |
| 🌧 IP Rating | IP65 | IP54–65 | IP65 | IP65 | IP21–IP54 | IP65 | IP21–IP54 | IP54 |
| Warranty | 5 Yr | 5 Yr | 5 Yr | 5–10 Yr | 5 Yr | 5 Yr | 2–5 Yr | 5 Yr |
| ⭐ Highlights | Long cycle LFP battery | Budget-friendly | High current + parallel (16 units) | Strong MPPT performance | Trusted brand service | Indian EPC integration | Low cost entry | Strong battery ecosystem |
📊 5 kW Hybrid Inverter Comparison
📈 04 — The Bigger Picture: Why Hybrid Is India’s Future
- 500 GW
India’s renewable target by 2030 — hybrid + storage is essential - 50%
electricity bill reduction across hybrid users - 6,000+ Cycles
LFP batteries (like Tata Mysine) → 15+ years backup life
👉 Hybrid systems don’t just generate energy—they create energy resilience.
For India’s growing grid, for homes facing power cuts, and for a cleaner planet—
Why Hybrid?
In recent times Alcheme Green Energy Company involved in the installation & commissioning of Residential, Commercial & Industrial hybrid solar system of varying capacities.
Hybrid solar is a strategic energy solution for both residential and commercial & industrial users. In residential systems, it works along with net metering, optimizing self-consumption while exporting excess power. In commercial & industrial (C&I) setups, it supports net feed-in / controlled export, where solar is used directly during the day and excess energy is stored for use during peak tariff hours from TANGEDCO.
By shifting consumption away from high-cost grid power (₹10–₹11/unit range), hybrid systems reduce peak hour charges, optimize energy usage, and ensure reliable backup without diesel—making it a smart financial and operational advantage.
